Wall Mounted Security Motion Detector
This product is a digital PIR+MW detector, exquisite design, easy installation. It contains digital processing software, which uses the infrared sensor as the main detection unit. When the infrared sensor detects the movement signal, it is supplemented by microwave detection to determine whether the movement signal is real. It can avoid false alarms caused by outdoor interference, stable and reliable.
Features:
Excellent anti-false alarm and capture capabilities.
Built-in temperature compensation and microwave anti-interference function, suitable for use in a variety of hot and cold environments.
K-band microwave detection technology can further suppress false alarms and improve detector sensitivity.
The ABS housing is durable and has excellent shock resistance.
Easy and quick to install.
Note: Do not mount the unit in direct sunlight or near heat sources.
Specifications:
Working Voltage: 7.5V-16V DC / 25mA
Detection Method: PIR + Microwave Detector

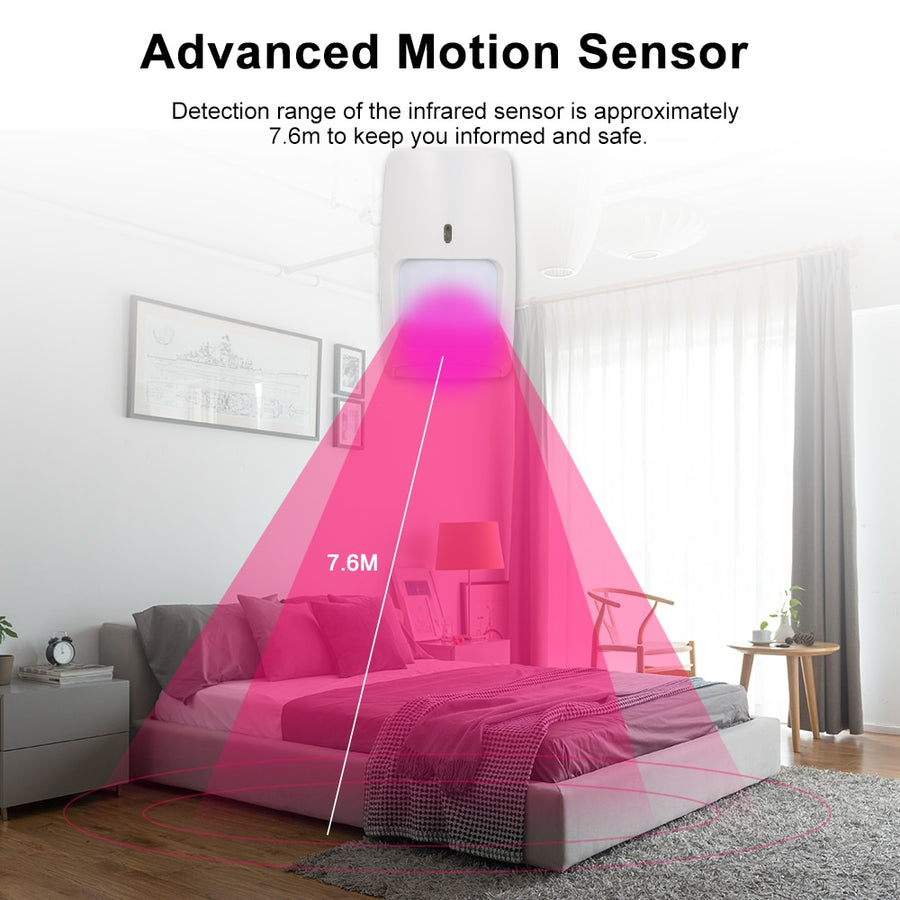

Detector Range:7.6mx7.6m
Sensitivity: 2-4 steps of normal pace in the detection zone
Microwave Frequency: 10.125GHZ
Alarm Relay: N.C. 30VDC, 500mA
Anti-tamper Switch: N.C. 24VDC, 500mA
Anti White Light: 8000LUX
Radiation Resistance: 30V/m, 10MHz - 1000MHz
Pet Immunity: <10kg
Casing Material: ABS
Operating Temperature: -15°C to 55°C
Relative Humidity: 5%-95% (RH)
Color: White      Â
Item Size: Approx. 124*75*43mm/4.88*2.95*1.69in
Item Weight: Approx. 125g/4.41oz
Package Size: Approx. 131*75*54mm/5.15*2.95*2.12in
Package Weight: Approx. 145g/5.12oz
Package List:
1 * Wired PIR Sensor
1 * User Manual
